VLSQHNCF 7.83Hz Frequency Generator – Adjustable 0.01Hz–100000Hz, USB-C, Without Shell

Overview

The VLSQHNCF 7.83Hz Frequency Generator is a precise tool built for researchers, makers, and studios exploring resonance and signal behavior. It delivers a wide range of sine wave frequencies with a focus on stability, accuracy, and ease of use. The plug‑and‑play design lets you start experiments in minutes, whether you are building a home lab, testing audio setups, or demonstrating wave concepts in class. The compact form invites thoughtful mounting or integration into custom enclosures, while tactile controls invite hands‑on exploration. At its core, a low temperature drift crystal oscillator paired with a high precision chip helps minimize drift and improve interference resistance, supporting repeatable results across sessions.

Key capabilities

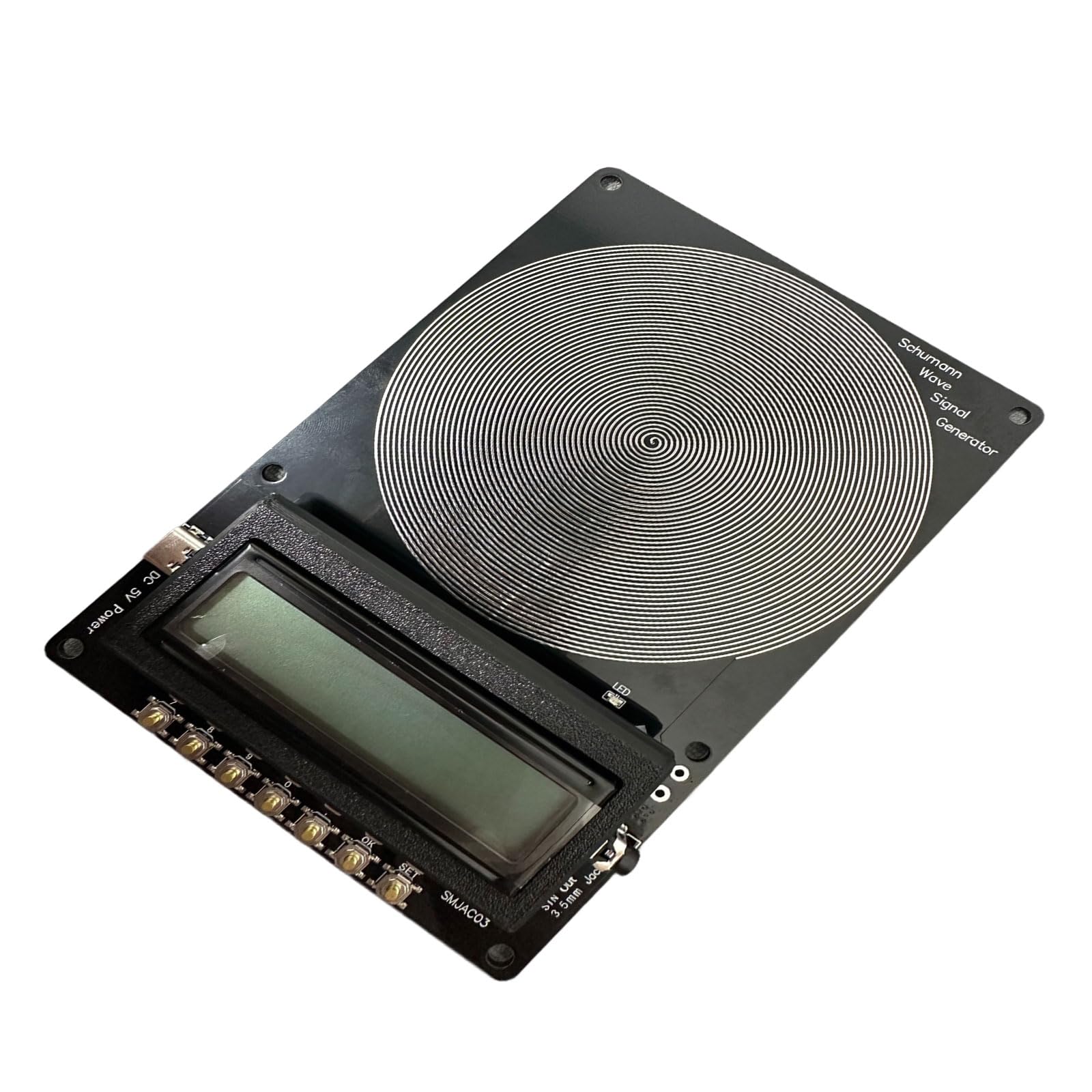

• Wide sine wave range from 0.01 Hz to 100000 Hz

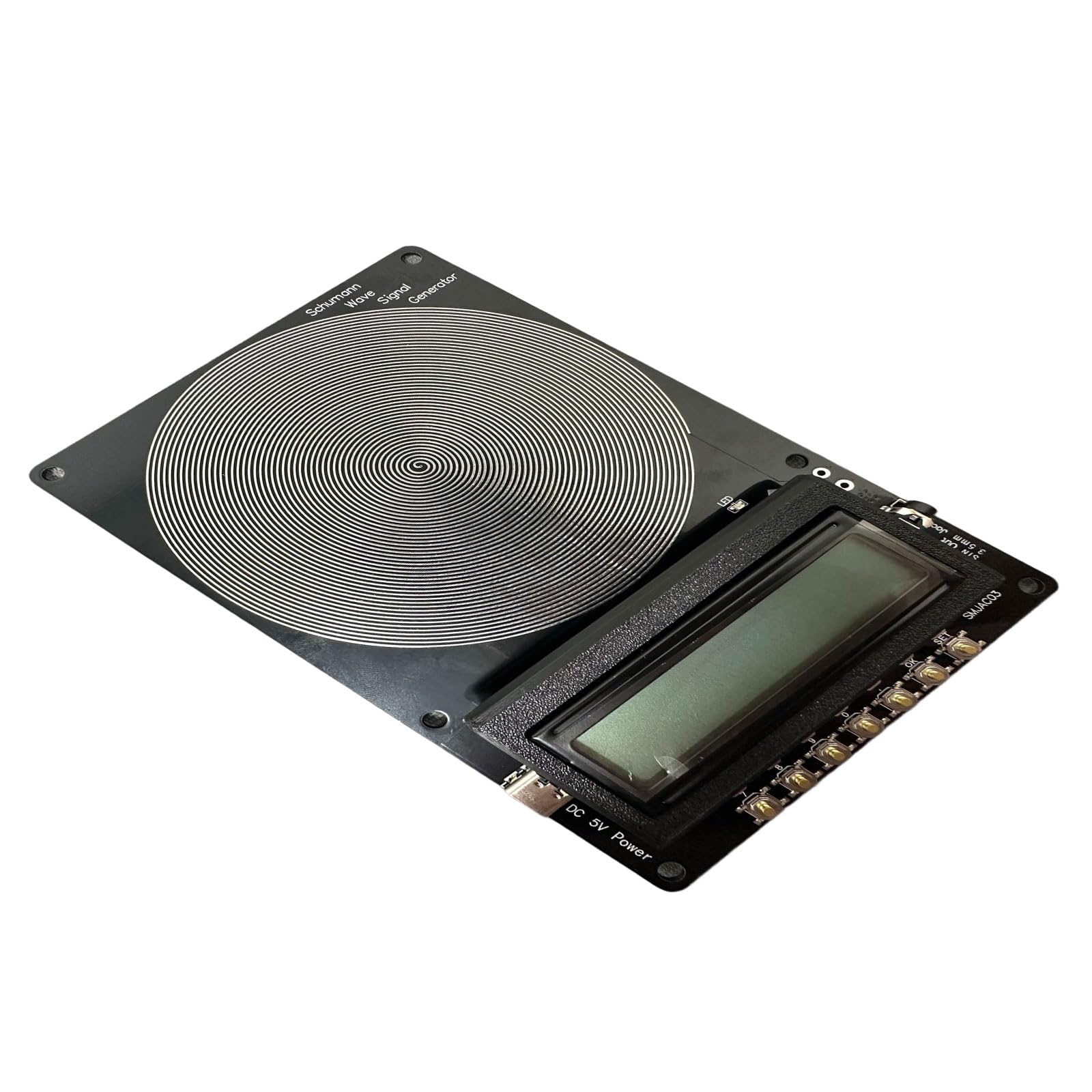

• Default frequency of 7.83 Hz for quick starting points
• Sine output stabilized around 3 V; square output at 5 V
• Low temperature drift crystal oscillator with a high precision chip for stability

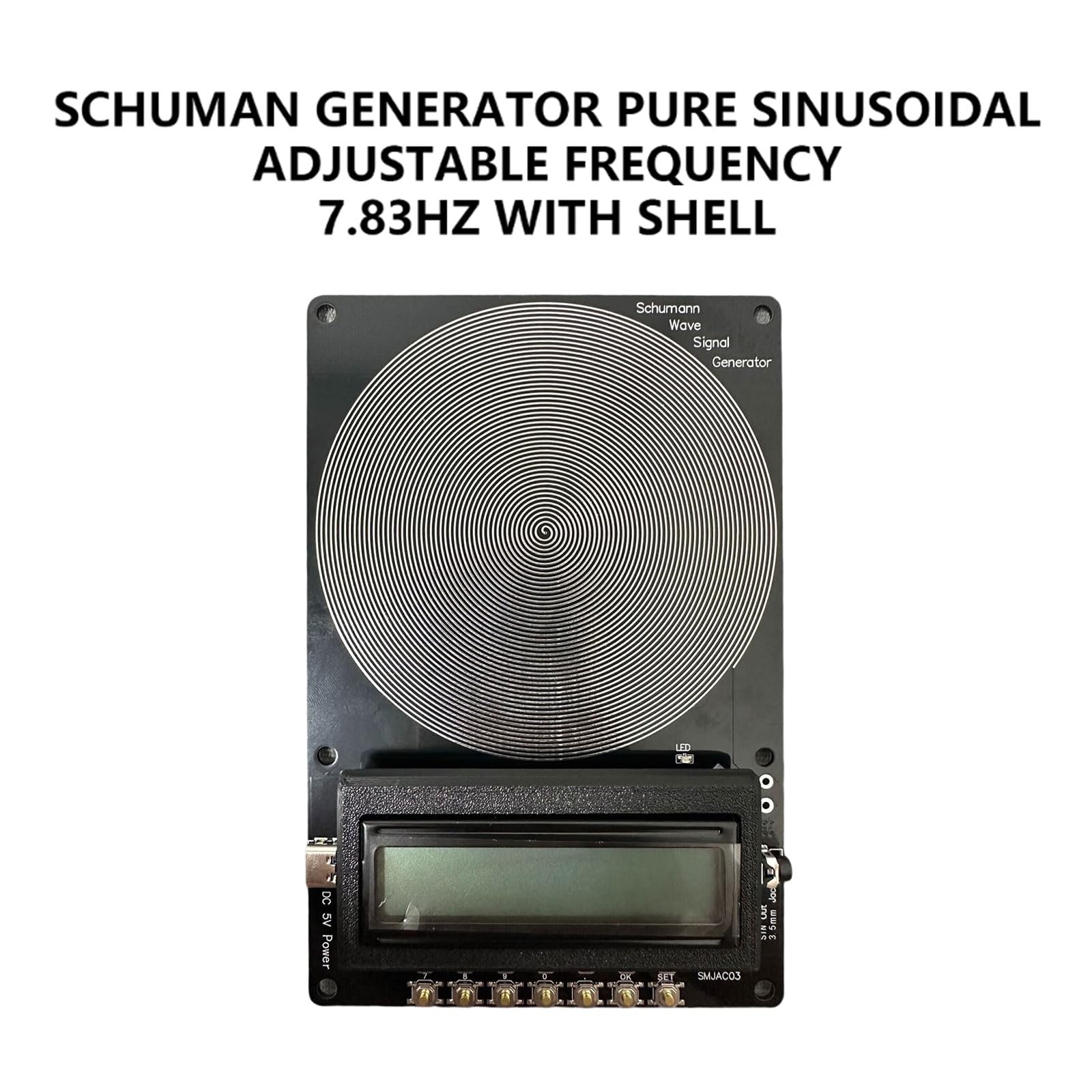

• USB‑C powered with Type C to Type C compatibility; plug‑and‑play

Practical uses

In daily use, the generator offers flexible capabilities for a variety of tasks. It supports home studios, small labs, classrooms, and demonstrations that require a stable frequency reference. When connected to speakers, audible tones can emerge as frequencies enter the hearing range, while inaudible low frequencies can still inform the way you set up experiments or demonstrations.

• Home studios and learning spaces for precise signal generation
• Research and experimental setups needing a stable reference frequency
• Educational demos of wave behavior and frequency modulation
• Portable setups for travel, field observations, or temporary labs

Design and compatibility

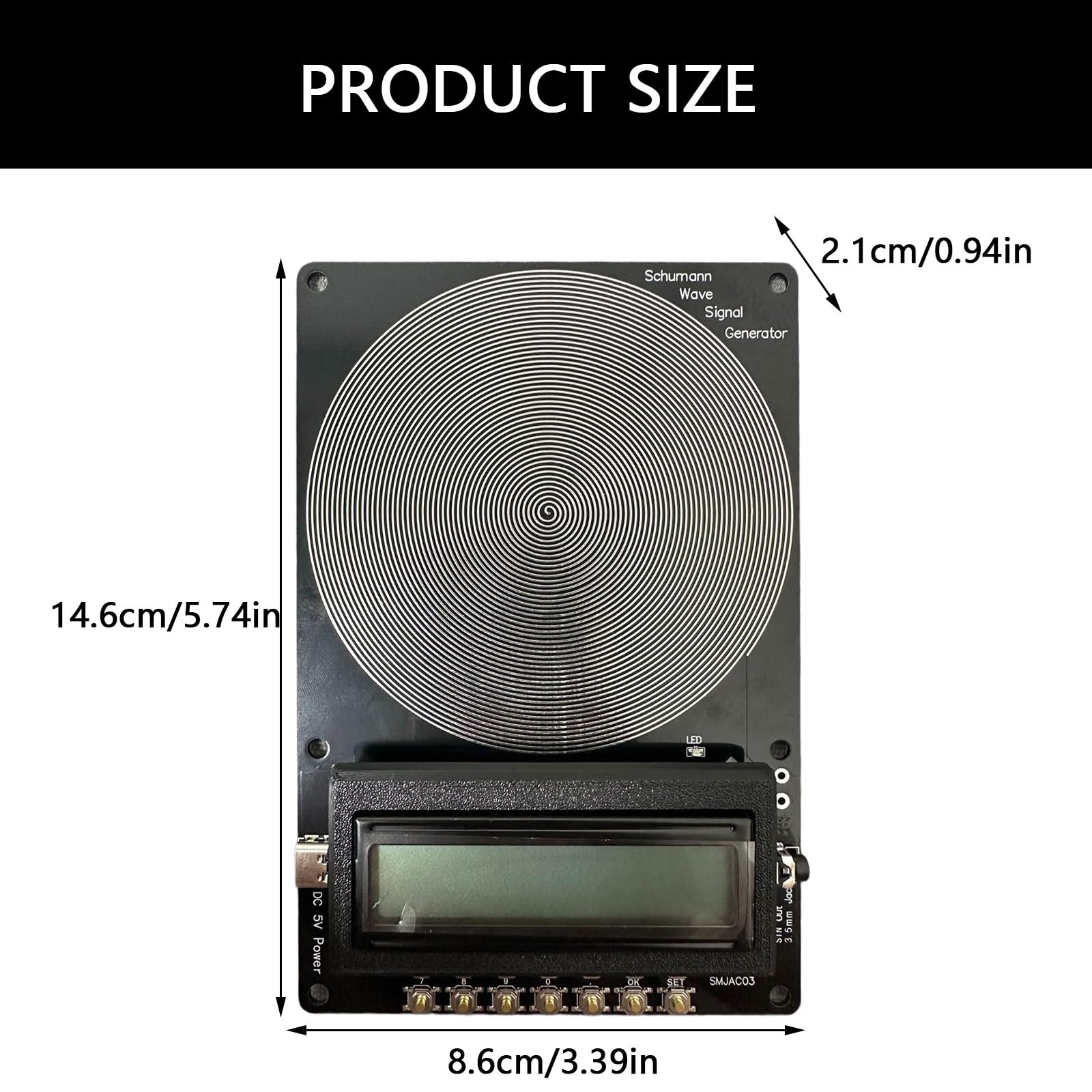

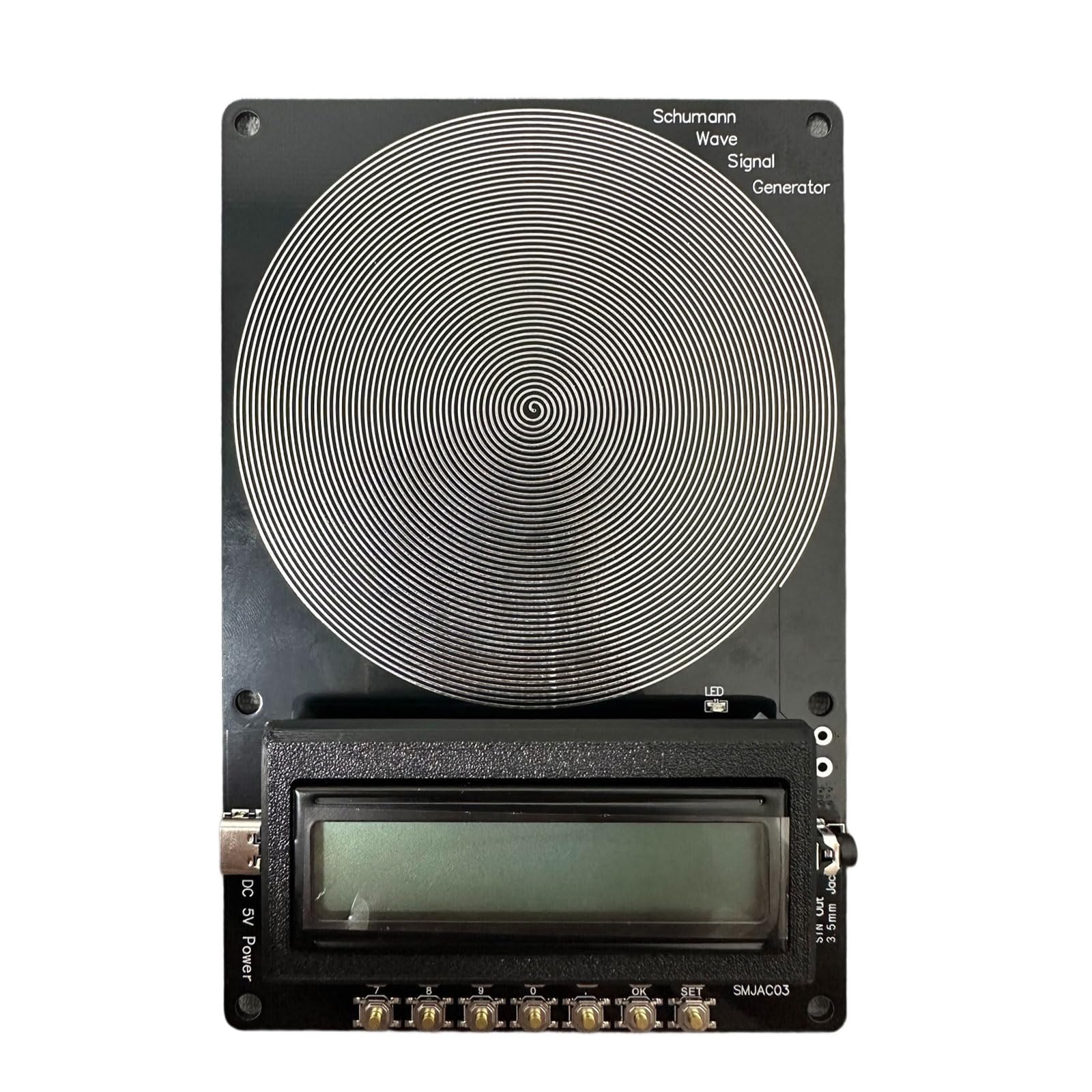

With a compact footprint of about 14.6 × 8.6 cm and USB‑C power, this device is easy to set up alongside modern power adapters and external speakers. It is designed to work with your preferred audio chain, delivering audible feedback when the frequency lands in the listening range. The unit is shipped without a shell, encouraging flexible integration into your chosen enclosure or setup.

Note that very low signals can be inaudible without amplification, but audible output appears as frequencies fall within the listening range on a connected speaker.
